Project 1: Realistic 3D Projectile Motion

Tip. Every highlighted link in this page is clickable. For fast navagation use Table of Contents

Author: Nels Buhrley Language: C++17 · Python 3 (visualization) Build: make — see Build & Run

Snapshot

For a fast technical check, jump to Code Structure and Build & Run.

Table of Contents

Overview

This project implements a 3D projectile motion simulator that goes well beyond the introductory “no air resistance” approximation. The simulation integrates the full equations of motion including aerodynamic drag, spin-induced Magnus force, and environmental wind, producing physically realistic trajectories for projectiles ranging from baseballs to ping-pong balls. Integration is performed with a 4th-order Runge-Kutta scheme, and results are exported to CSV for 3D visualization in Python.

Physics Background

Equations of Motion

A projectile of mass $m$ moving through air at velocity $\vec{v}$ experiences three forces simultaneously:

\[m\vec{a} = \vec{F}_\text{gravity} + \vec{F}_\text{drag} + \vec{F}_\text{Magnus}\]

Gravity

\[\vec{F}_\text{gravity} = -mg\hat{z}\]

where $g = 9.81$ m/s² is the gravitational acceleration.

Aerodynamic Drag

\[\vec{F}_\text{drag} = -\frac{1}{2}\rho \|\vec{v}_\text{rel}\|^2 C_d A \,\hat{v}_\text{rel}\]

where:

The drag force is proportional to $v^2$ and always opposes the relative motion, producing the characteristic asymmetric trajectory where the descending arc is steeper than the ascending arc.

Magnus Force (Spin Effect)

\[\vec{F}_\text{Magnus} = S\,(\vec{\omega} \times \vec{v})\]

where $S$ is the spin factor (units of m²/s) and $\vec{\omega}$ is the angular velocity vector of the projectile. This force arises because a spinning object creates asymmetric pressure distributions in the surrounding airflow — the effect that makes a curveball curve, a golf ball hook or slice, and a table-tennis ball dip.

The direction of the Magnus force is perpendicular to both the spin axis and the velocity, following the right-hand rule of the cross product. For a baseball with backspin ($\vec{\omega}$ horizontal), the Magnus force provides lift; for sidespin, it produces lateral deflection.

Net Acceleration

Combining all forces and dividing by mass:

\[\vec{a} = -g\hat{z} - \frac{\rho \|\vec{v}_\text{rel}\|^2 C_d A}{2m}\hat{v}_\text{rel} + \frac{S}{m}(\vec{\omega} \times \vec{v})\]

This is implemented directly in Projectile::calculateAcceleration().

Code Structure

File Role
main.cpp Entry point — constructs Run, which handles user interaction
include/Projectile.h Declares Vector3D, Vector4D, Projectile, Trajectory, and preset subclasses
include/Processing.h Declares rk4Simulation(), info helpers, and Run class
src/Projectile.cpp Implements vector operations, calculateAcceleration(), CSV output
src/Processing.cpp Implements RK4 integrator, Run controller with interactive menus

Preset Projectiles

The code includes physically accurate presets defined as subclasses of Projectile:

Preset Mass (kg) Radius (m) $C_d$ Air Density (kg/m³) Spin Factor $S/m$ Notes
Baseball 0.149 0.0366 0.35 1.225 4.1×10⁻⁴ Realistic MLB parameters
pingPongBall 0.0027 0.02 0.50 1.27 0.04 High spin-to-mass ratio
perfectProjectile 1.0 0.1 0.0 0.0 0.0 No drag or spin (textbook parabola)

RK4 Integration

The 4th-order Runge-Kutta method advances the state vector $\vec{y} = (\vec{r}, \vec{v}, t)$ at each time step:

\[\vec{y}_{n+1} = \vec{y}_n + \frac{h}{6}\left(\vec{k}_1 + 2\vec{k}_2 + 2\vec{k}_3 + \vec{k}_4\right)\]

with the standard intermediate evaluations $\vec{k}_1 \ldots \vec{k}_4$. The local truncation error is $\mathcal{O}(h^5)$ and the global error is $\mathcal{O}(h^4)$, providing high accuracy even with moderate time steps.

The simulation terminates when the projectile hits the ground ($z \leq 0$ after launch), and the full trajectory is stored as a sequence of Vector4D points $(x, y, z, t)$.

Results

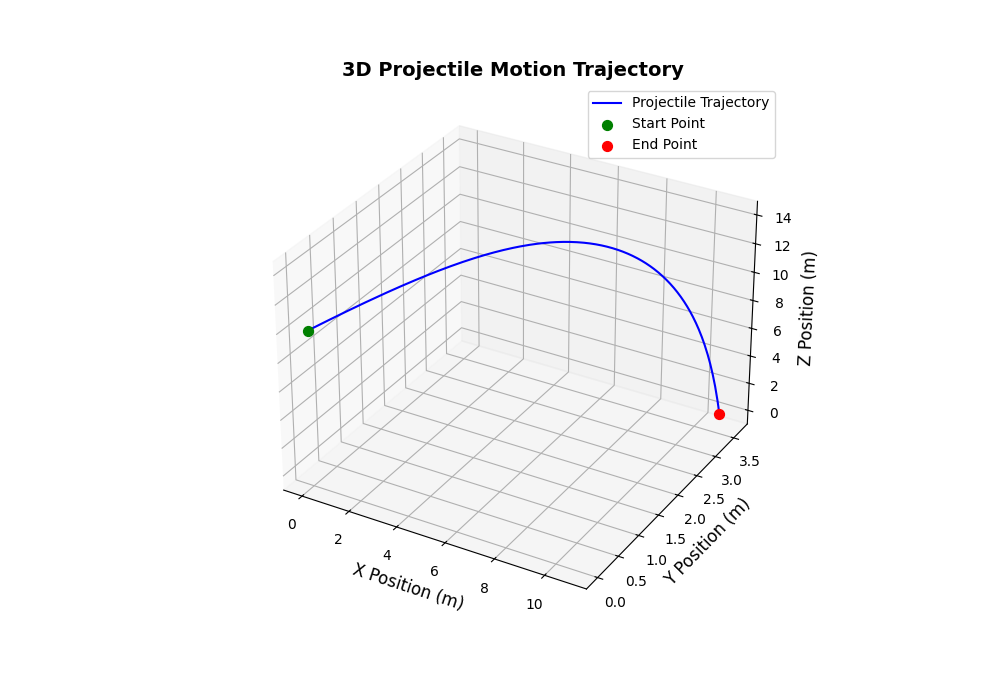

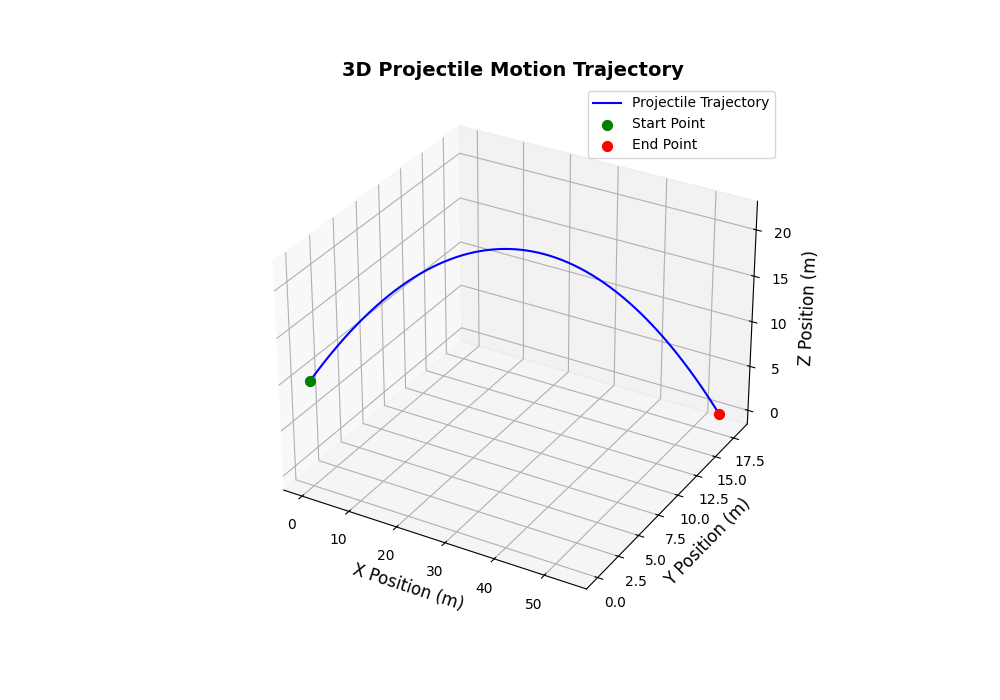

Trajectory 1 Trajectory 2

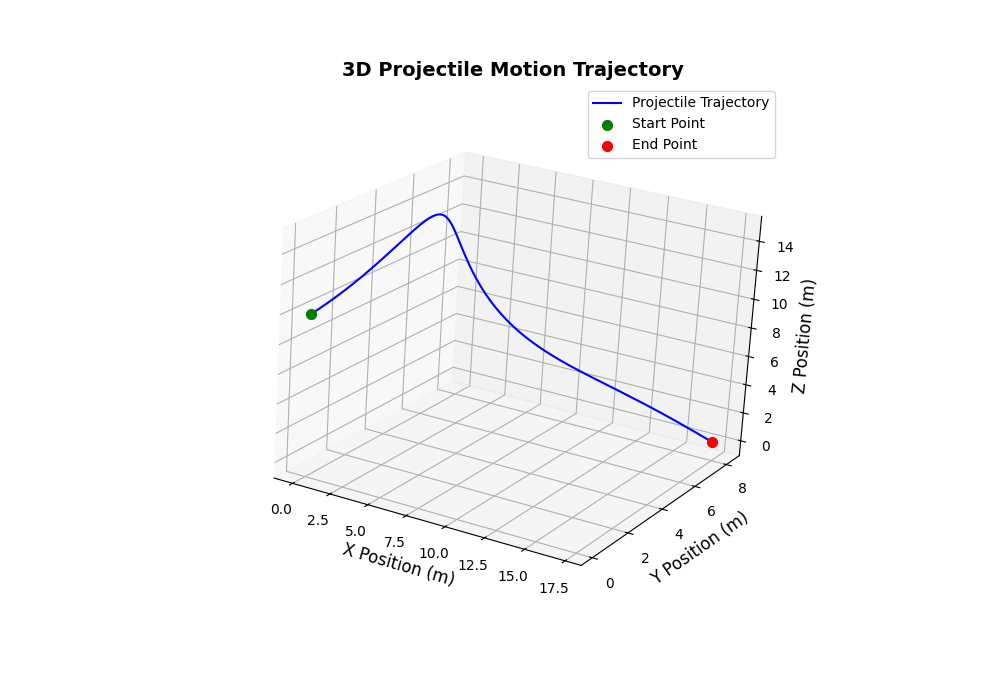

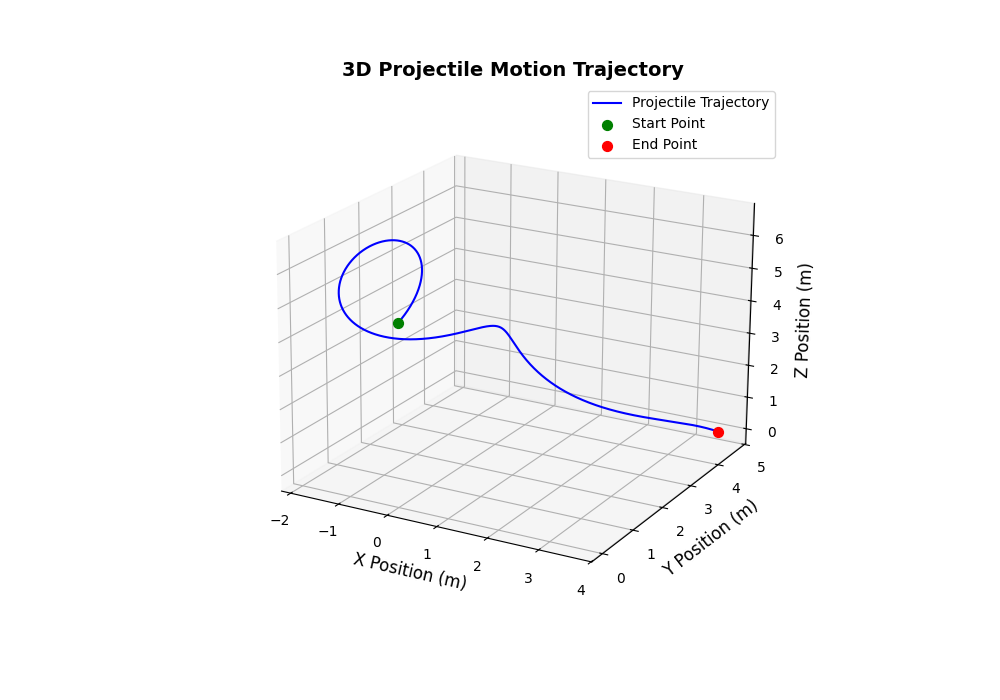

Trajectory 3 Trajectory 4

3D trajectory plots showing the effects of drag and Magnus force on projectile paths. Compare the symmetric parabola of the perfectProjectile (no drag) with the asymmetric arcs of the Baseball and pingPongBall (drag + spin).

Sources of Error

Source Nature Mitigation
Time step truncation RK4 global error is $\mathcal{O}(h^4)$; too-large $h$ produces inaccurate trajectories Use small dt (default 0.001 s); validate against analytic parabola
Constant drag coefficient Real $C_d$ varies with Reynolds number (speed) Adequate for subsonic projectiles; supersonic would need $C_d(\text{Re})$
Fixed air density Real $\rho$ decreases with altitude ($\rho(h) = \rho_0 e^{-h/H}$) Negligible for trajectories below ~1 km
Rigid-body assumption Spin rate assumed constant throughout flight Acceptable for short flights; longer trajectories need spin decay
Ground model Flat ground at $z = 0$; no terrain Sufficient for ballistics validation

Build & Run

Prerequisites

Build

make

Run

./bin/main

The program presents an interactive menu to choose between validation runs, preset projectiles, or custom parameters. Output is written to Output/trajectoryN.csv (auto-incrementing filenames).

Visualize

python3 ploting.py

Produces a 3D trajectory plot saved to Output/trajectoryN.png.

Simulation Parameters

Configured interactively at runtime or via preset classes:

Parameter Description Units
Initial position Launch point $(x_0, y_0, z_0)$ m
Initial velocity Launch velocity $(v_x, v_y, v_z)$ m/s
Spin vector Angular velocity $(\omega_x, \omega_y, \omega_z)$ rad/s
Mass Projectile mass kg
Radius Projectile radius (for drag area $A = \pi r^2$) m
Drag coefficient Dimensionless $C_d$ —
Air density Atmospheric density $\rho$ kg/m³
Spin factor Magnus coefficient $S/m$ m²/s
Wind Environmental wind velocity vector m/s

Key Techniques

Technique Purpose
4th-order Runge-Kutta integration $\mathcal{O}(h^4)$ accurate trajectory computation
Vector3D / Vector4D operator overloading Clean, readable vector arithmetic
Inheritance-based projectile presets Baseball, pingPongBall, etc. encode real physical parameters
Cross-product Magnus force Physically correct spin-dependent lateral deflection
Quadratic drag law Realistic air resistance proportional to $v^2$
Auto-incrementing file output Multiple simulation runs saved without overwriting
Python 3D visualization Immediate visual validation of trajectories

Project Structure

Project 1: realistic projectile motion/
|-- main.cpp              # Entry point -- interactive simulation launcher
|-- include/
|   |-- Projectile.h      # Vector3D, Vector4D, Projectile, preset subclasses
|   `-- Processing.h      # RK4 integrator, Run controller
|-- src/
|   |-- Projectile.cpp    # Physics: acceleration, vector ops, CSV output
|   `-- Processing.cpp    # Integration loop, interactive menu, file I/O
|-- ploting.py            # Python 3D trajectory visualization
|-- bin/                  # Compiled executables
`-- Output/               # CSV data and PNG trajectory plots
    |-- trajectory1.csv
    `-- trajectory1.png

Nels Buhrley — Computational Physics, 2025
